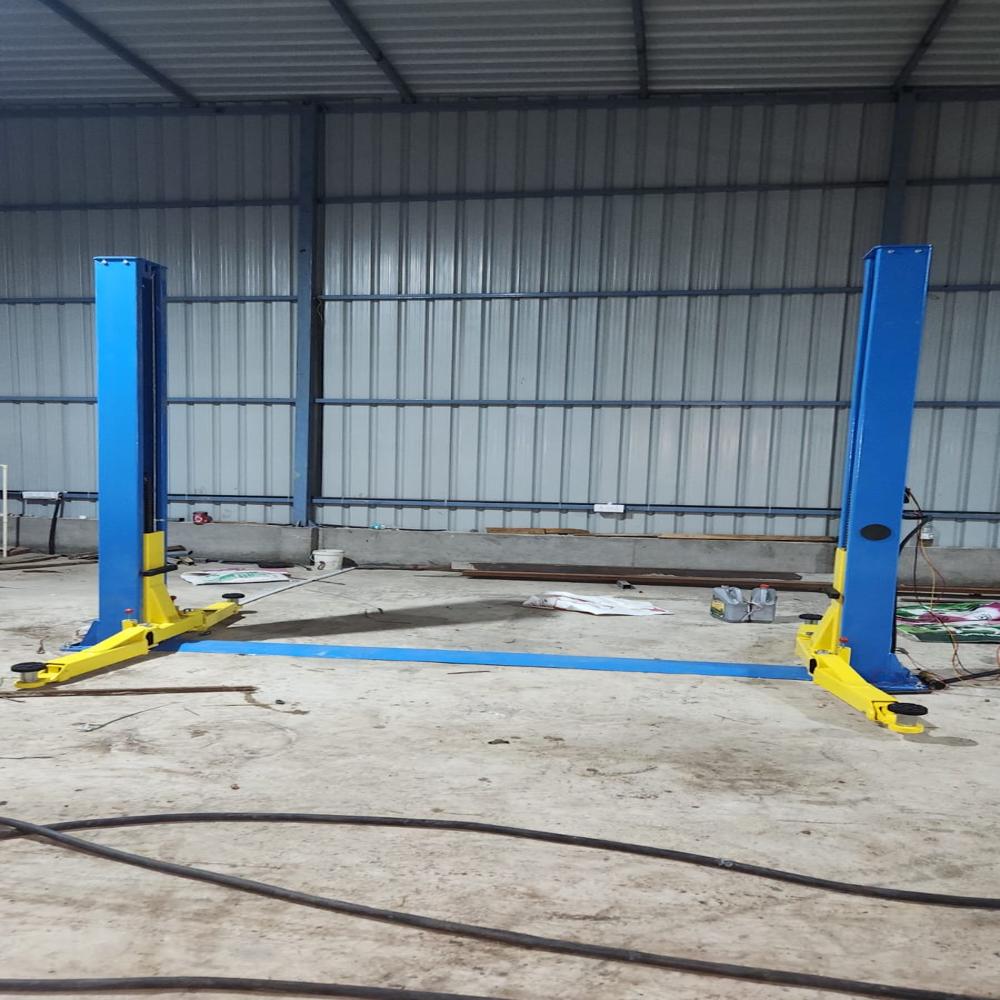

Two post car lift

Name: Two post car lift
Brand: Universal Equipment & Solutions
Price: 105000.0 INR
Availability: InStock

Price 105000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Two post car lift Specification

Car Dimension
Up to 5000 mm length

Usage
Car Repair Garage/Workshop

Load Capacity
4 Tons

Noise Level
<70 dB

Overhead Height
3600 mm

Door Opening Size
2800 mm

Step Width
Adjustable (Min 800 mm)

Machine Room Size
Not Required (Machine Roomless)

Inclination
0 (Flat Platform)

Voltage
220V/380V

Type
Two Post Car Lift

Hoist Way Size
3100 mm Width

Material
High Strength Steel

Drive Type
Hydraulic

Power Supply
1-phase/3-phase

Speed
50-60 Hz

Max. Lifting Height
1800 mm

Max. Lifting Weight
4000 kg

Mechanism Type
Hydraulic/Electric

Working Temperature
-5C to 40C

Control Device
Push Button/Remote Switch

Safety Device
Double Safety Locks, Emergency Stop, Automatic Arm Lock

Capacity
4,000 kg

Installation Type
Floor Mounted, Bolted Anchor

Lifting/Lowering Time
50 seconds up/40 seconds down

Motor Power
2.2 kW

Arm Type
Telescopic, Two Stage

Column Height
2824 mm

Standard Accessories
Anchor Bolts, Hydraulic Oil Pipe, User Manual

Max. Width Between Posts
2800 mm

Arm Length
Minimum 720 mm, Maximum 1100 mm

Paint Coating
Powder Coated, Anti-Rust

Oil Tank Capacity
10 Liters

Weight of Equipment
Approx. 600 kg

Overall Width
3340 mm

Two post car lift Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

Two post car lift About

A Two Post Car Lift is a reliable vehicle lifting system used in garages, workshops, and service centers. It lifts cars safely using two strong vertical posts, providing easy access to the vehicles underside for servicing, repair, and maintenance.

Exceptional Lifting Capacity

Engineered for reliability, this two post car lift effortlessly handles up to 4,000 kg, making it perfect for both light and heavy vehicles. Its telescopic arms with adjustable lengths and a column height of 2,824 mm offer versatility, while the hydraulic drive ensures efficiency in daily automotive service and repair tasks.

Advanced Safety Features

Safety is a priority with features such as double safety locks, emergency stop, and automatic arm locks. The floor-mounted, bolted anchor installation guarantees superior stability during operation. These safety mechanisms, combined with powder-coated, anti-rust materials, protect both the operators and the vehicles.

User-Friendly Operation and Maintenance

Equipped with a responsive push button and remote switch control system, the lift provides smooth, swift lifting and lowering-50 seconds up and 40 seconds down. The hydraulic oil tank (10 liters) and powerful 2.2 kW motor deliver reliable performance with minimal maintenance, while the noise level remains under 70 dB for a comfortable workspace.

FAQ's of Two post car lift:

Q: How is the two post car lift installed in a workshop?

A: The lift is floor-mounted using bolted anchors, making it stable and secure once installed. No machine room is required, and standard installation accessories, like anchor bolts and hydraulic oil pipes, are included with the product.

Q: What types of vehicles can this car lift accommodate?

A: Designed for versatility, it can securely lift cars up to 4,000 kg in weight and 5,000 mm in length, making it suitable for most sedans, SUVs, and light commercial vehicles commonly serviced in garages and workshops.

Q: When should the lift's hydraulic oil be checked or replaced?

A: It's advisable to check the hydraulic oil level regularly during routine maintenance. For most lifts, hydraulic oil should be replaced every 12 months or after intensive usage as explained in the user manual to maintain smooth operation.

Q: Where is the best place to install this lift in a garage?

A: Install the lift on a flat, reinforced concrete floor with enough clearance for its maximum dimensions: an overall width of 3,340 mm and door opening size of 2,800 mm. Ensure adequate overhead height (3,600 mm) to accommodate the lift and the raised vehicle.

Q: What is the process for lifting and lowering a vehicle?

A: Operation is straightforward: position the vehicle between the posts, adjust the telescopic arms under lifting points, and use the push button or remote switch to lift or lower. Lifting takes roughly 50 seconds and lowering about 40 seconds, thanks to the efficient hydraulic system.

Q: How do the safety features benefit users during operation?

A: Double safety locks, automatic arm locks, and an emergency stop ensure that the lift remains secure throughout use, minimizing the risk of accidental lowering or instability, thus enhancing overall workshop safety.

Q: What are the primary benefits of using this two post car lift?

A: With its strong lifting capacity, rapid cycle times, and comprehensive safety features, this car lift improves garage productivity, provides flexibility for different vehicle sizes, and ensures long-term durability with minimal maintenance.
